Radi8 LED Strip

CCT

3000K/4000K/5700K

Design Application

Environment : Indoor

Installation : Surface

Build Specifications

Material: Flexible Copper Guide

Body Finish : Sand Black

Antiglare - UGR <19

Beam Angle : 120°

Cooling Architecture

Heat Sink Material : Aluminium

Cooling Technique : Passive Cooling

Optical Assembly

Beam Angle : Fixed

Tilt : No

Swivel : No

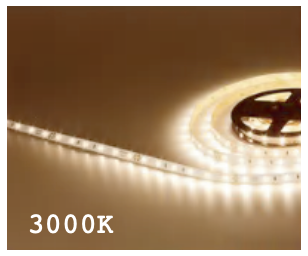

3000K

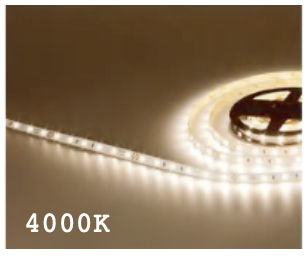

4000K

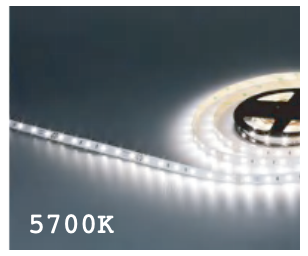

5700K

Electrical Specifications

Driven with : Constant Voltage Driver

Operating Voltage : 24V DC

LED Power Watts : 5.5W/10.6W/17.6W

Power Factor : p.f. > 0.95

Class : 2

LED Specifications

Photobiology Risk Group : RG1

Light Efficiency : 80lm/W

LED Life Time : L80B10 >50000 hours

Colour Rendering : (CRI) > 80

Led Type : SMD2835

Control Systems

Standard : Switchable On/Off

Optional : PDIM,DDIM,BTTM,CBT
