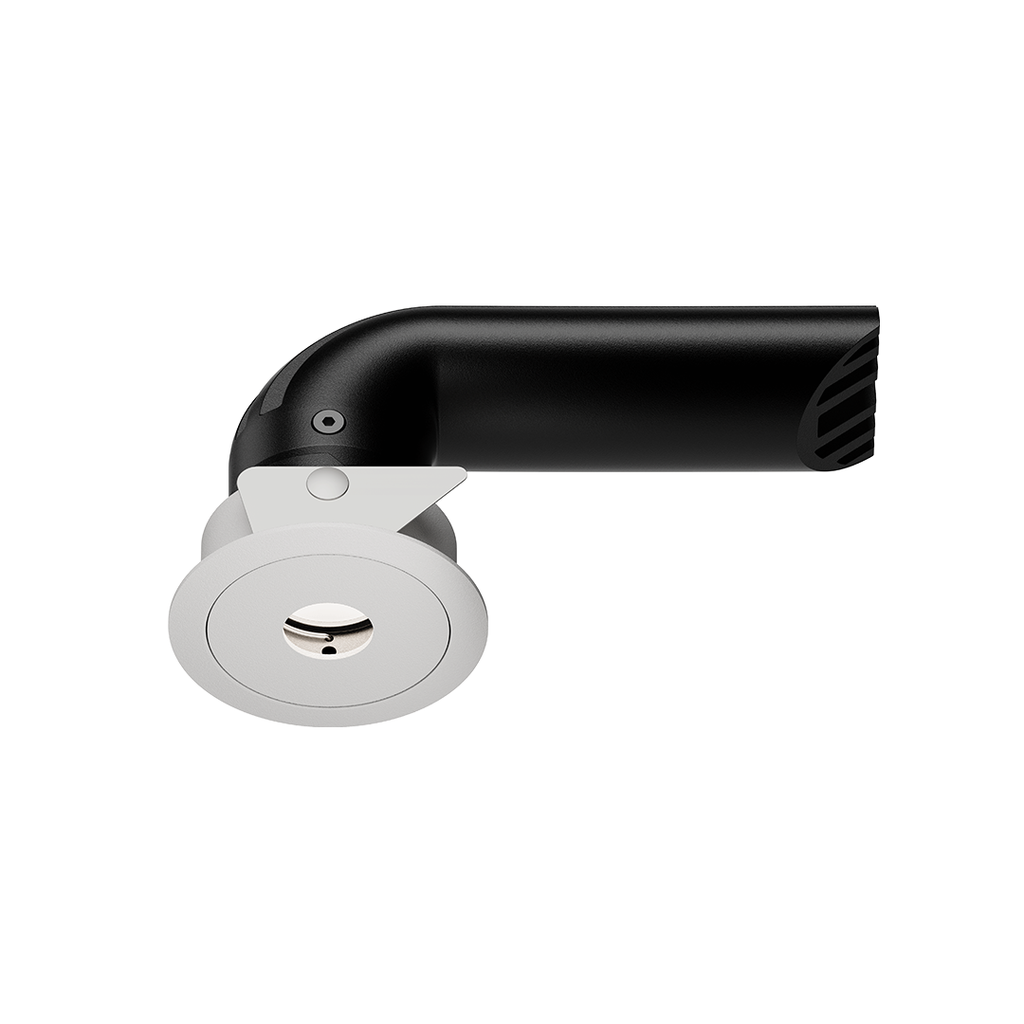

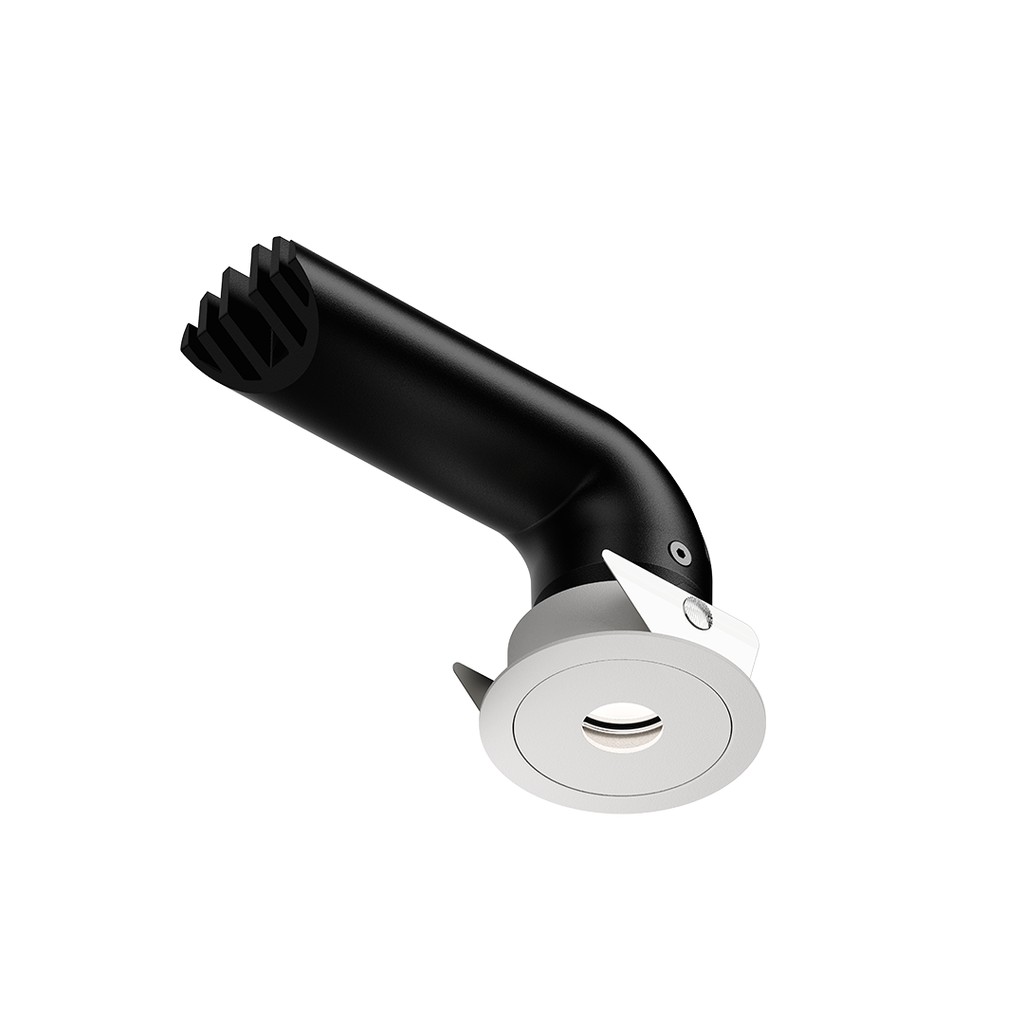

Bend

CCT

3000K/3500K/4000K

Design Application

Environment : Indoor

Installation : Recessed

Build Specifications

Housing : Aluminium

Body Finish : White

Primary Lens : PMMA

Reflector - White/Black

Antiglare - UGR <16

Beam Angle : 43°

Cooling Architecture

Heat Sink Material : Aluminium

Cooling Technique : Passive Cooling

Optical Assembly

Beam Angle : Fixed

Tilt : Yes

Swivel : No

Electrical Specifications

Driven with : Constant Current Driver

Input Voltage : 220V- 240V - 50/60Hz

LED Power Watts : 15W

Power Factor : p.f. > 0.95

Class : 2

LED Specifications

Binning : 3 Step MacAdam

Photobiology Risk Group : RG1

Light Efficiency : 110lm/W-3000K

112lm/W-3500K

116lm/W-4000K

LED Life Time : L80B10 >50000 hours

Colour Rendering : (CRI) > 90

Led Type : COB

LED Fitted : Breezelux COB

Control Systems

Standard : Switchable On/Off

Optional : PDIM,DDIM,BTTM,CBTM
